BCK RPi-Desktop Casing (Kit)
Article number: 75379
75379 - BCK RPi-Desktop Casing Kit (top/front/side view)

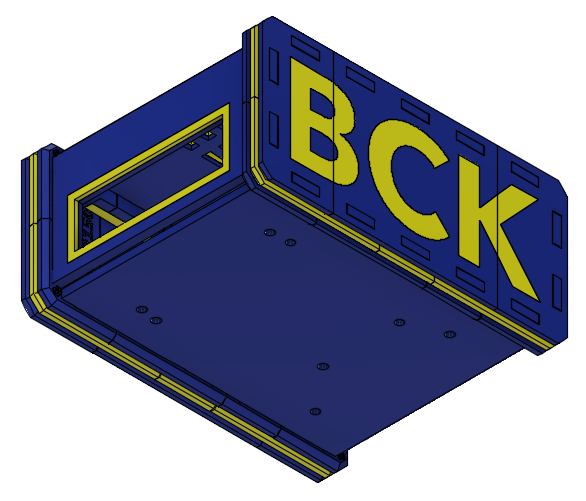

75379 - BCK RPi-Desktop Casing Kit (bottom/front/side view)

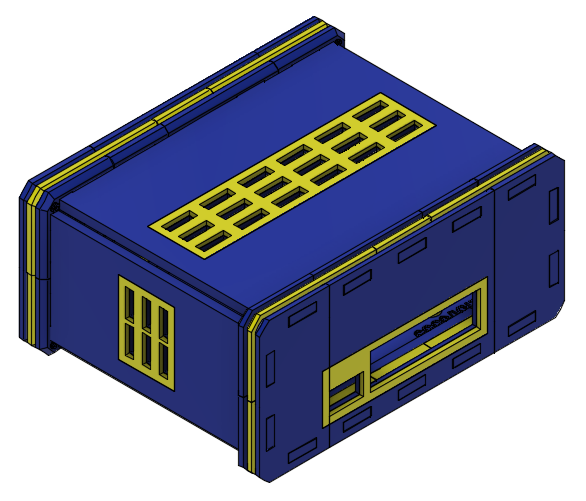

75379 - BCK RPi-Desktop Casing Kit (back/top/side view)
Description
The RPi-Desktop Casing Kit is a housing kit for using the Raspberry Pi microcontroller in a office and desktop environment. The modular housing consists of various components that can be plugged together. The connections are robust and hold the individual parts firmly together, but can be removed at any time. This means that the housing can be used multiple times or adapted for different projects.
Colors
| SKU | Colors (main & accent) | Colors images | GTIN / EAN |
|---|---|---|---|

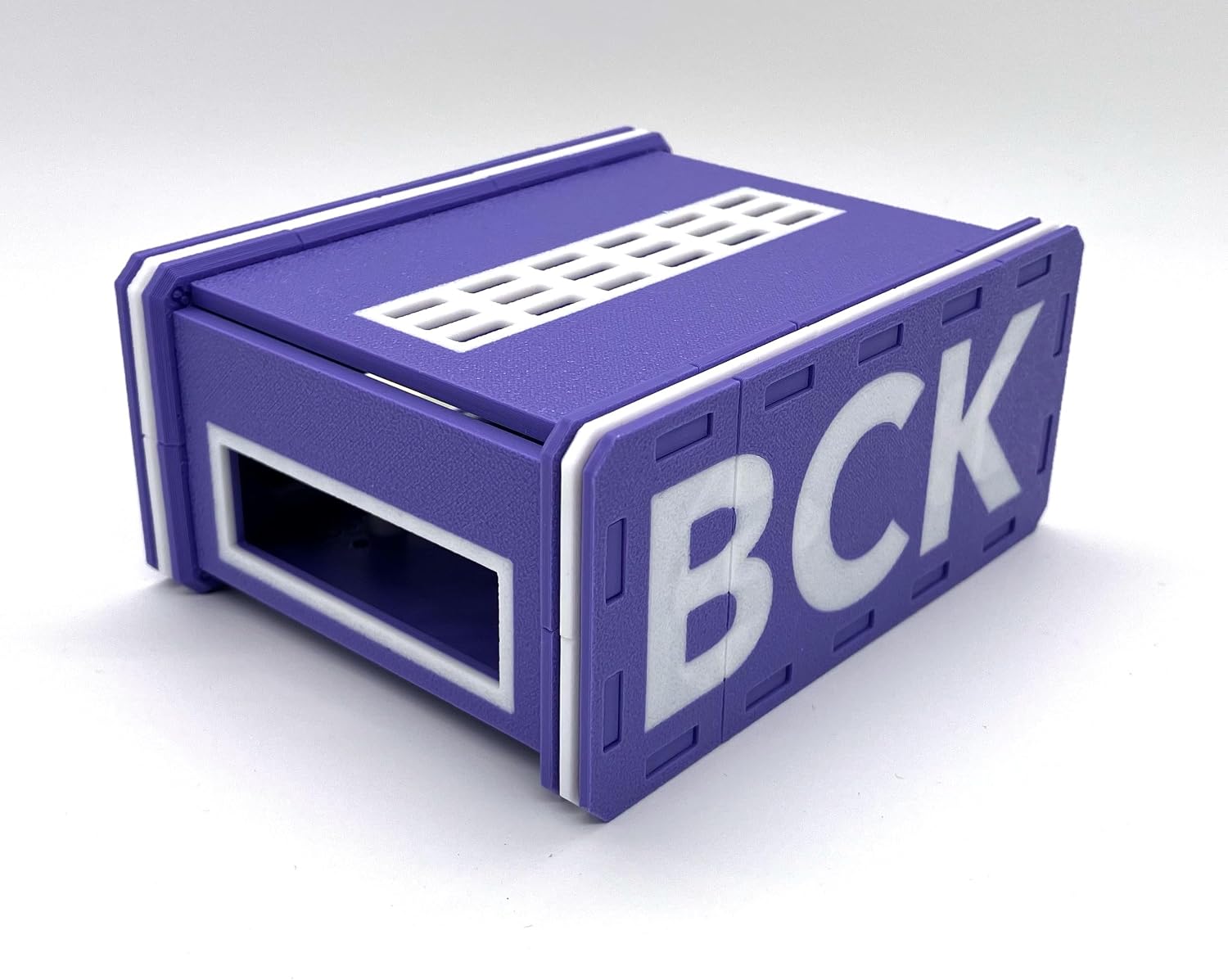

| 75379-1 | purple & white |   |
4270005168708 |

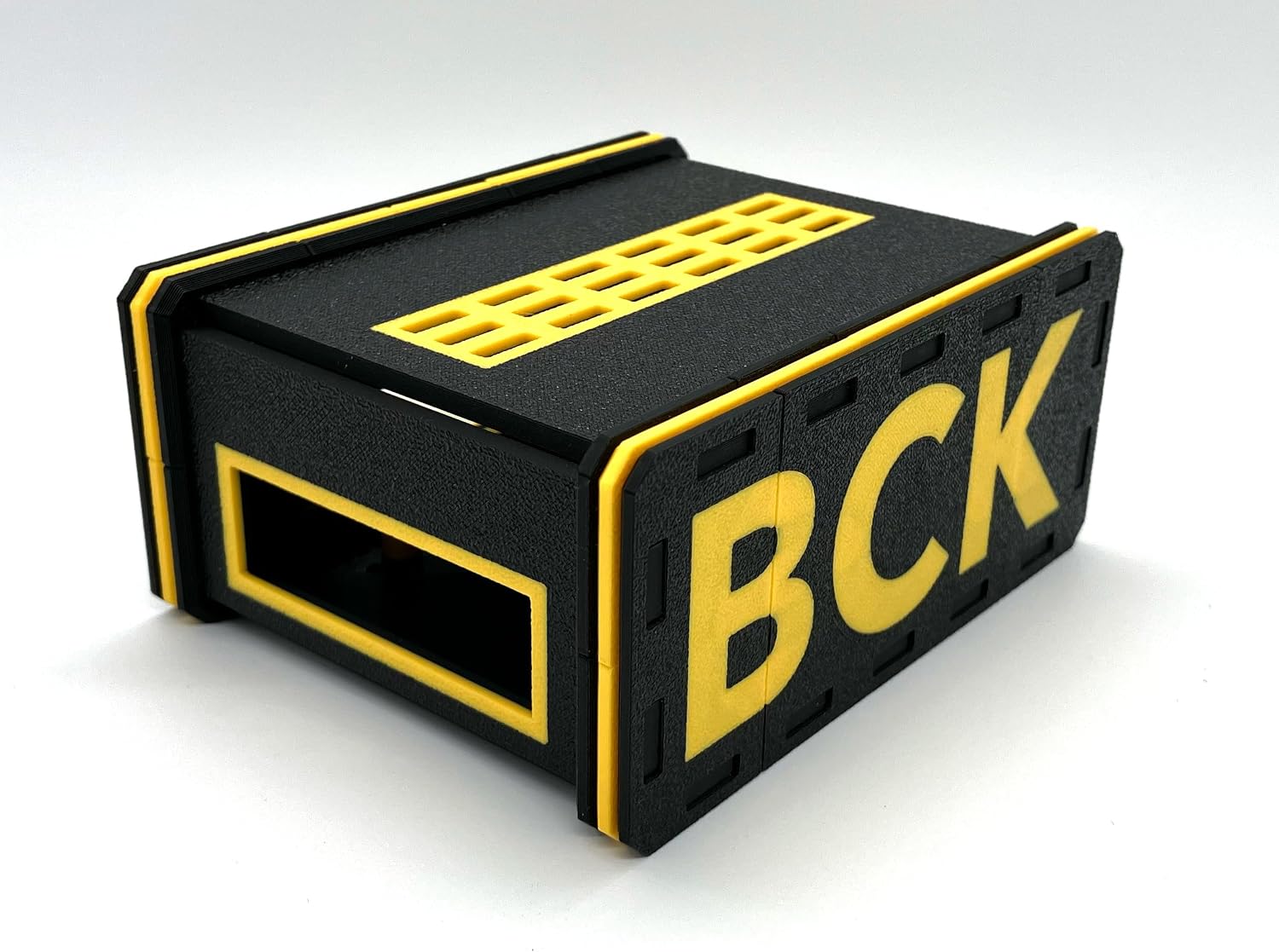

| 75379-2 | black & yellow |   |
4270005168715 |

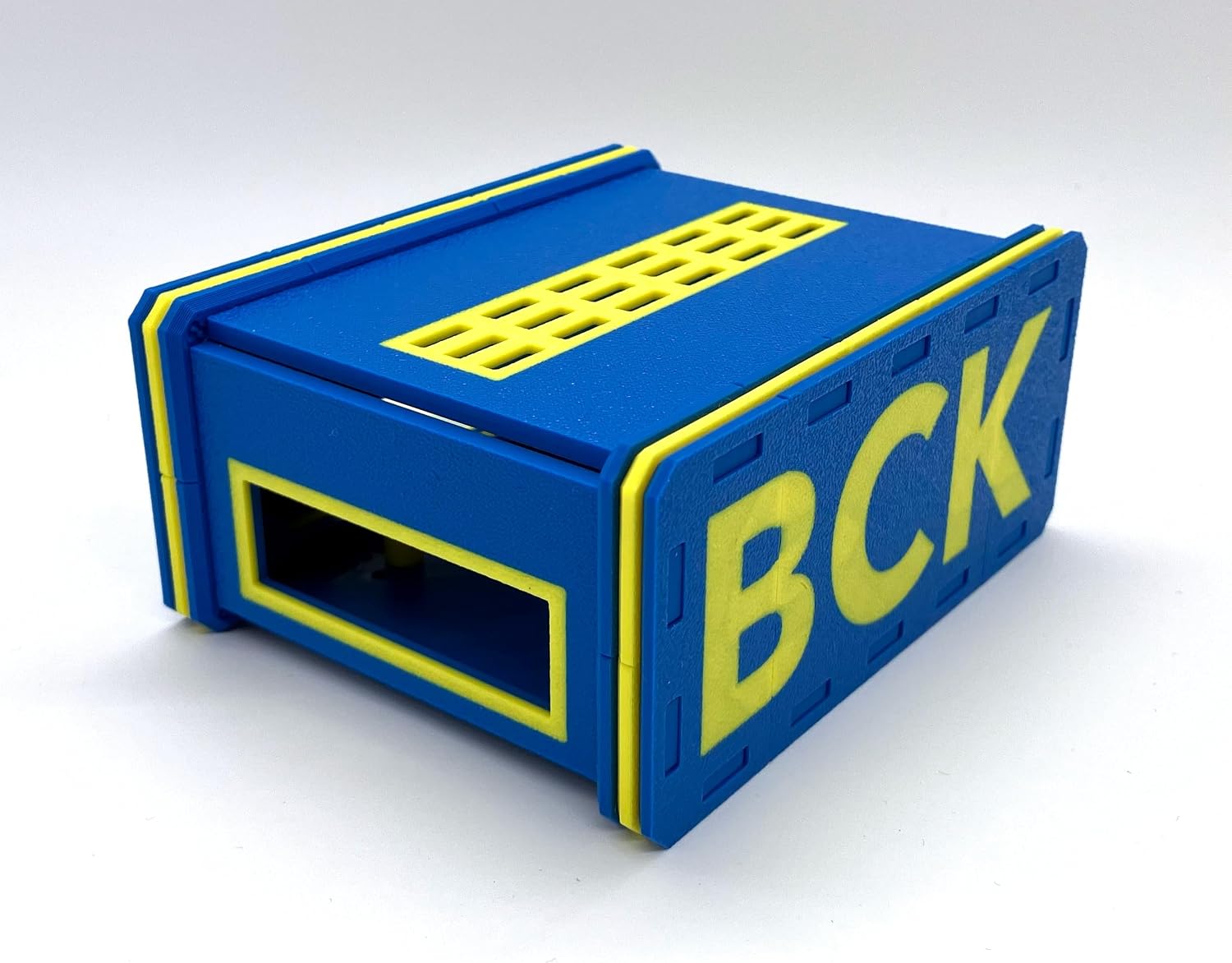

| 75379-3 | blue & yellow |   |
4270005168753 |

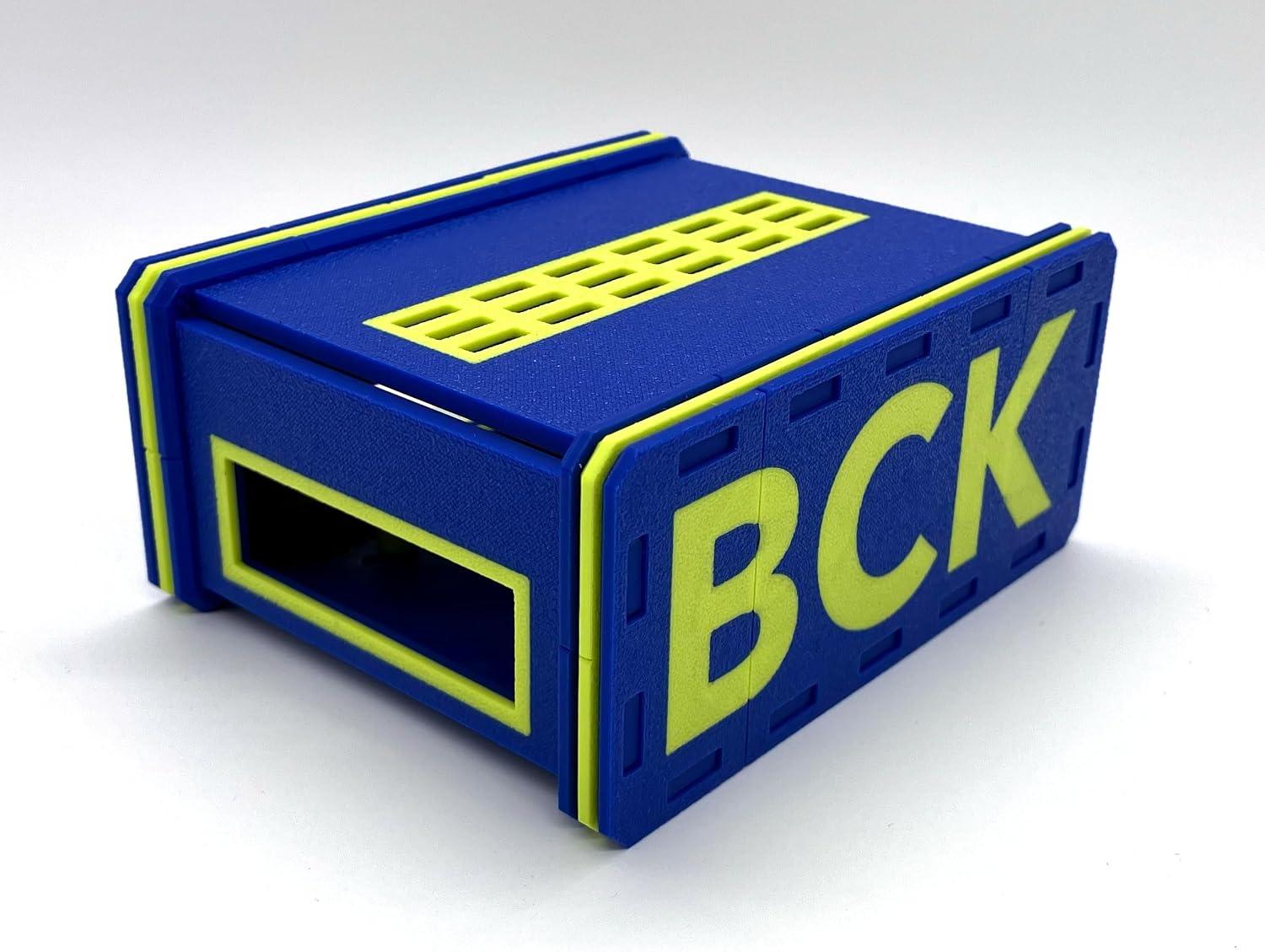

| 75379-4 | blue & green |   |
4270005168739 |

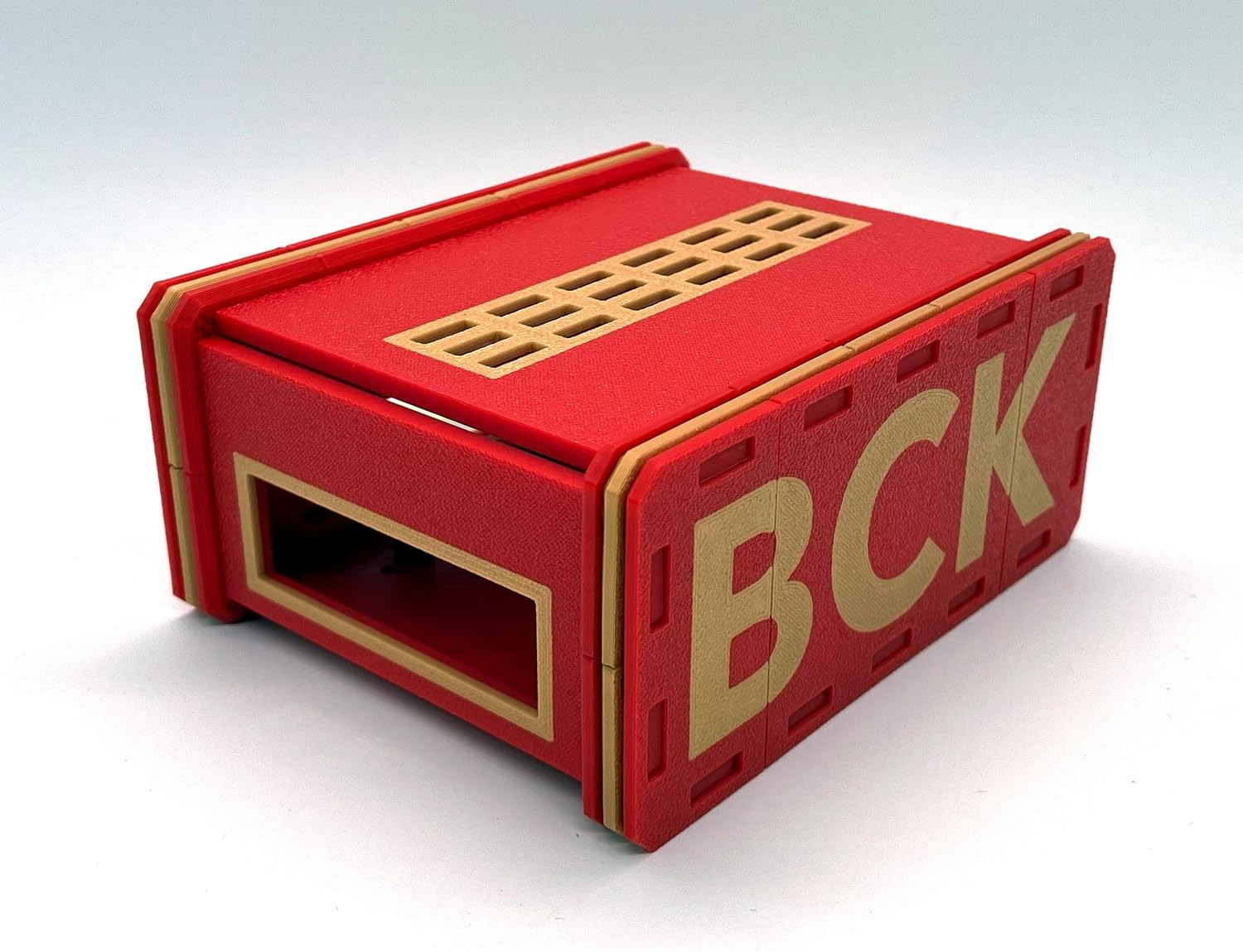

| 75379-5 | gold & red |   |
4270005168746 |
The color information is for guidance only and may vary in detail depending on material, production, batch or supplier.
Technical data
Dimensions
| Parameter | Value |
|---|---|
length |
111.25 mm |
width |
88 mm |
height |
51.3 mm |
Microcontroller & embedded board compatibility
| Board | compatibility | source | comment |
|---|---|---|---|
| Raspberry Pi 5 (Model B) | yes | tested by BCK | use "RPi" holes |
| Raspberry Pi 4 (Model B) | yes | tested by BCK | use "RPi" holes |
| Raspberry Pi 3 (Model B) | yes | tested by BCK | use "RPi" holes |
| Raspberry Pi 2 (Model B) | yes | tested by BCK | use "RPi" holes |
| Raspberry Pi 1 (Model B) | yes | tested by BCK | use "RPi" holes |
| Arduino Uno R3 | yes | tested by BCK | use included spacers, with "ArdU" holes |
